ROTEX® Screeners Ensure Fast, Efficient, and Accurate Screening of Abrasive Materials

Recently, the ROTEX® Screener from ROTEX Global, LLC, was featured in the CBS News Sunday Morning story, “The History of Salt, In a Pinch”.

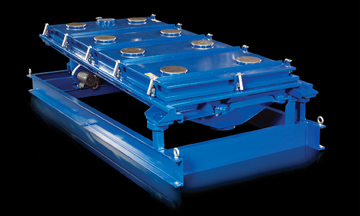

ROTEX Screeners provide rapid distribution, stratification, and separation of particles through the gyratory-reciprocating motion of the near-horizontal screen surface. Designed to maintain efficiency and capacity, the positive screen mesh cleaning system contains bouncing balls to keep screen openings clear and aid particle stratification.

The unique gyratory-reciprocating motion begins with a horizontal circular motion at the feed end that immediately spreads the material across the full width of the screen, maximizing screen use. The circular motion gradually diminishes along the length of the machine to an elliptical path, and finally to a nearly straight-line motion at the discharge end. This motion allows the machine to process material at a high capacity and improves screening performance with near-size material. There is no vertical component to this motion, thus keeping the material in constant contact with the screen surface.

The corrosion-resistant design and construction withstands even abrasive applications, including mined salt, road salt, water softener pellets, and edible salts. Dynamic Absorber drives are designed for long-term, trouble-free service with minimal maintenance. A sliding inlet connection eliminates the need for regular replacement of connecting sleeves.
ROTEX Screener models range from 1 to 5 screen surfaces for separations from 12 mm to 325 mesh. All screener models include completely enclosed positive sealing, stainless steel contact parts, automatic tensioning, and patented spring actuated clamps.

The recently introduced APEX™ Screener incorporates the same gyratory-reciprocating motion and efficiency performance of the ROTEX Screener. In addition, the APEX features such ergonomic features as side access to screens and ball trays. The result is the screener can be maintained efficiently by one person, resulting in increased production up-time.

In addition to the ROTEX and APEX screeners, Rotex offers another separation option, the Minerals Separator™ which provides unsurpassed screening performance when high capacity, sharp separations, and high efficiencies are required. Its elliptical-linear motion is ideal for mined minerals and abrasive applications, including salt, sand, roofing granules, potash, clay, and borax.

Source: ROTEX Global, LLC
