How to Assemble a World Record

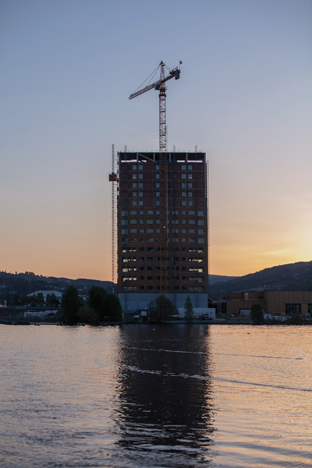

The world’s tallest timber building is groundbreaking for more than just its height. When Mjøstårnet was to be built, Moelven employed a completely new and untested assembly technique.

“Outsiders may perhaps think that there is great risk involved in using a new assembly method on such a large and prestigious project. However, following many years of development, we were ready to take a new step,” says Rune Abrahamsen, director at Moelven Limtre.

Mjøstårnet will be Moelven’s 2nd world record in terms of tall timber buildings. In 2014 the apartment building Treet was completed in Bergen. The 14-story structure, with a height of 51 m, was first assembled at the factory in Moelv before being transported to the building site for final assembly. However, with Mjøstårnet the beams are taken directly to the building site, without any form of trial assembly.

“This is accuracy taken to the extreme. The beams arrive fully processed at the building site, and there they have to fit down to a millimeter. There is no scope for errors in the assembly. The principle is almost like Lego for grown-ups. All of the pieces have specific place and must fit,” says Mr. Abrahamsen.

This construction method also ensures that building Mjøstårnet is much faster. When the world’s tallest timber building is completed in March 2019, Moelven will have hoisted several hundred glulam beams into place in the structure over the course of 10 months.

“This assembly method is very efficient in terms of time, and will become the new standard for glulam structures like this,” adds Rune Abrahamsen.

The actual assembly has taken place using a large crane at the building site. No external scaffolding has been used. When Moelven has hoisted the glulam structure into place, several storys have been hoisted at once.

“We’ve hoisted 4-5 floors at a time. Then we’ve complemented them with Trä8 flooring elements. These are really huge structures, and it’s an incredible feeling to watch almost 20 m of the building’s height being hoisted into place in one go. Both the building and our pride grow in tandem,” says Lars Ivar Lindberg head of assembly of Moelven Limtre.

Source: Moelven Limtre
