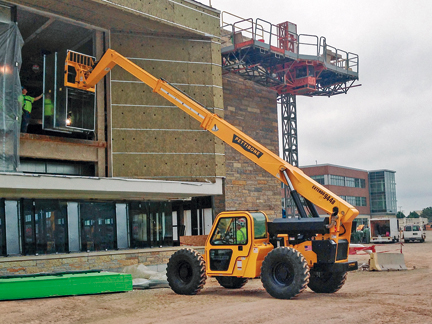

The Extendo 944B is powered by a fuel-efficient, 117-horsepower Cummins QSF 3.8 Tier 4 Final turbo diesel engine, featuring electronic control and protection with SCR aftertreatment. A Parker IQAN-MD3 display has been added to provide instant engine and after-treatment diagnostics. The unit’s market-proven Dana T12000 Powershift series transmission offers 3 speeds, forward and reverse, and is complemented by a heavy-duty transmission cooler. Delivering a maximum load capacity of 4,080 kg, the 944B provides forward reach up to 9.2 m, and a maximum lift height of 13.5 m. Single joystick, pilot-operated controls allow for smooth control of all the Extendo’s boom and auxiliary hydraulics. For operation in tight areas, the 944B offers 4-wheel, 2-wheel and crab steering modes and has a turning radius of just 3.76 m. The unit is powerful, yet compact enough to fit under an 2.43 m doorway. The robust design of the Extendo features 2 wide-stance, heavy-duty lift cylinders with innovative automatic fork and load leveling that eliminates the need for slave cylinders. To further improve load stability, the 944B offers 24° of frame sway (12° left and right of center) and is equipped with a rear axle stabilization system. New service access doors allow users to remove only the front half of the enclosure to perform daily engine and transmission fluid checks, rather than the entire cover. A battery disconnect switch is now standard and accessible from the cab. Formerly an option, a cab step has been added as a standard feature, allowing the operator to more easily climb into and out of the machine. The cab itself is built to provide outstanding visibility at any boom position. Engineered with comfort in mind, the Extendo also comes with an adjustable suspension seat and adjustable right-side armrest. The 944B features standard upgraded tires that have demonstrated increased longevity in the field. The telehandler comes with a variety of standard fixed and side-tilt carriages from 1.22 m to 1.83 m, and several optional attachments are available – including utility buckets and pallet, lumber and block forks. Other optional equipment includes foam-filled tires, light packages, an enclosed, climate-controlled cab, and several others.
|
