TT Technologies Introduces Updated
Grundopit Pit-Launched Mini Directional Drill

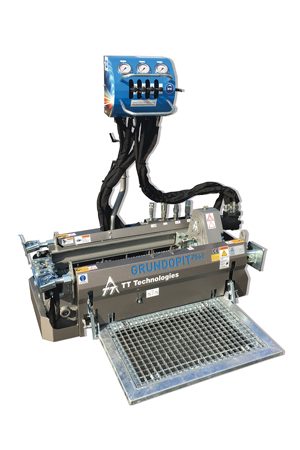

TT Technologies’ redesigned Grundopit pit-launched mini directional drill is well suited for difficult fiber-to-the-home and utility service line installations in tight working conditions. The unit is compact, 137 cm long, 109 cm wide and 145 cm tall. The Grundopit delivers 60 kN (13,489 lbf). of thrust and pull back and 750 Nm (553 lbf ft) of torque with bore length up to 45.7 m. The Grundopit is an ideal entry-level system for utilities, cable industries or as a supplement to larger units.

The new unit features a patented instant plug-in lock that holds the drill stem in place. The instant plug-in lock system allows new drill stems to be added easily by engaging the new drill stem at the rotational motor. This means that drill stems are only screwed into the lead stem and not the rotational motor, cutting the time it takes to add a stem in half.

Components include a 2-part bore rig, patented drill stem plug in, 30 drill stems, bore head with angled steering surface, backreamer and swivel coupling, hose package and power pack.

Source: TT Technologies
