New Grade Lasers from Leica Geosystems

From general construction to agricultural applications, the latest series of Rugby Grade Lasers from Leica Geosystems offer users a powerful combination of efficiency, accuracy and flexibility.

“With functionality options that range from on-the-fly remote control operation, high accuracy extended range operation and advanced internal laser leveling technology, this series of lasers is uniquely designed to meet a wide range of applications including the most demanding ones found when coupled with machine control systems”, says Dan Dykhuis, director of Construction Product Marketing for Leica Geosystems.

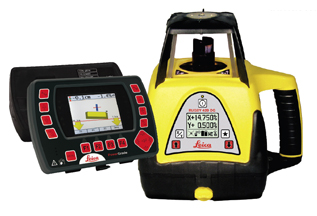

Designed for applications such as land leveling and tiling that require long distance and stable performance over the whole day, the dual grade Rugby 420DG lasers operate from an optional long-range, two-way Remote Control feature that lets users manage all Rugby functions “on-the-fly”. These lasers incorporate a high power visible, red laser diode that generates an operating range of up to 1100 m diameter. The Rugby 420DG also includes a laser plane stabilization feature which ensures accurate and repeatable performance from morning until night and an electronic axis alignment feature for easy one-person alignment in the field, improving grade and set up accuracy.

Like the Rugby 420DG lasers, the dual grade 410DG are designed to operate from an optional long-range, two-way Remote Control. With its integrated infrared laser diode, this advanced laser has an operating range up to 800 m that is ideal for general construction and machine control applications.

The Rugby 320SG single grade has a built-in visible red laser diode for an operating range up to 900 m.

The Rugby lasers works with MC200 Depthmaster for excavators, MC1200 for motor graders, and control systems based on Leica CAB laser sensors for dozers, scrapers, box blades, and similar equipment.

All Rugby 320SG, 410DG and 420DG lasers offer superior power management for up to 130 hours of continuous operation. In addition to the two years Leica Geosystems standard international warranty, the new Leica Rugby Grade Laser Series is offered with an optional three-year warranty extension.

Source: Leica Geosystems
