Operator Features Make Crack Sealing Elementary

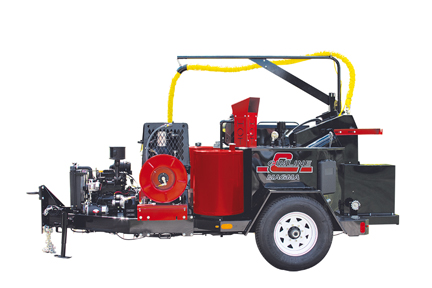

For 2013 Cimline has taken the best features of 3 models and combined them into the crack sealer that made them famous – the Magma – now in its 4th generation.

The Gen IV Magma is available in 3 sizes: 567, 870, and 1552 l. It incorporates operator features for efficient crack sealing with very little effort. Choose the AutoStart and operators are informed of ready-to-seal status with 3 green lights. Digital flow control provides smooth, even material flow no matter what sealing tip is required. A new “no drip” ergonomic sealant wand features a special ball valve to eliminate drips between crack sealing. Add the optional air compressor with hose reel and the Gen IV becomes a crack cleaning/crack sealing system with one-pass efficiency. Easy to read gauges and digital control for all functions make the Magma Gen IV a user-friendly tool for pavement preservation crews.

Hose technology has been addressed with an efficient carrier to reduce operator fatigue. Operators work safer and more efficiently when they are farther from the machine due to the Magma’s boom placement. An expanded work zone is created and more square feet of coverage is provided. Heated and non-heated hoses are available as well as a dual hose option for maximum performance.

Cimline’s signature features have been retained on the Gen IV Magma, including the low-profile design that makes loading sealant blocks a no-reach, no-stress task. No-splash doors prevent accidents on the job when sealant is loaded into the oil-jacketed kettle. An efficient burner keeps sealant at optimum temperatures while reducing diesel fuel consumption. The hydraulically-actuated auger/agitator assures even sealant mixing and temperature stratification.

Cimline’s sealant recirculation ensures fast heat-up and quick recovery times. The external material pump promotes easy maintenance and operates at less than 25 rpm to virtually eliminate back pressure and packing leakage while extending pump service life.

Maintenance has been addressed for maximum uptime with easy burner access and a non-submerged material pump so no entry is required into the melter tank. Spin-on oil and burner filters with shut-off valves reduce fuel spills. Easy engine access is assured without removing an enclosure and a management system protects the engine from low fluid damage.

Community-friendly features have been addressed with the standard After Burn® that reduces smoke from melting sealant by up to 20%. An optional After Burn 2® actively cleans emissions by up to 95% with less smoke and fumes.

Source: Cimline Pavement Maintenance Group
