Mack Trucks Expands Mack® mDRIVE™ HD Capabilities
with Split-Shaft Functionality

On January 23, 2018, at the World of Concrete, Mack Trucks introduced a new split-shaft functionality for its Mack® mDRIVE™ HD automated manual transmission (AMT), giving customers with high-demand power take off (PTO) needs a fully integrated solution. The new feature is standard on all Mack mDRIVE HD AMTs.

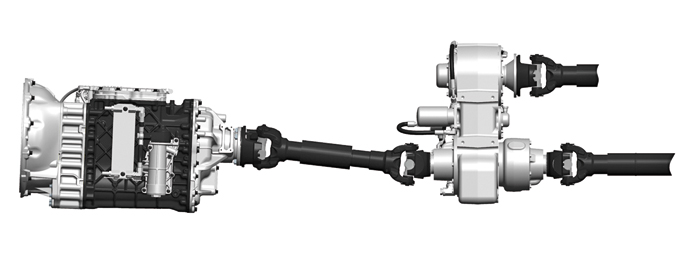

Instead of taking power from an engine- or transmission-mounted PTO, split-shaft PTOs are mounted in the middle of the driveline to receive output directly from the transmission, supplying more torque for auxiliary equipment such as large concrete pumps, vacuum body or high-pressure liquid transfer applications.

While the split-shaft PTO is engaged, power to the axles is disconnected. The split-shaft functionality is standard on all 12-, 13- and 14-speed mDRIVE HD AMTs and can be activated by a Mack dealer. In addition, all GHG2017 F-Series mDRIVE HD AMTs can be reprogrammed with split-shaft functionality with assistance from the Mack Body Builder Support Group. This new functionality also allows transmission start in 7th thru 12th gears and shift to a desired continuous operation gear of 11th or 12th.

The mDRIVE HD is fully integrated with Mack’s MP® series engines and Mack proprietary drive axles. This integration enables unique transmission software packages, which can be selected based on the customer’s application. An “Enhanced Construction” package provides optimized on/off-road performance and gives the driver full control over any terrain, while an “EZ Shift” package delivers smoother shifts for sensitive payloads like bulk liquids.

Available in direct or overdrive configurations, the 13- and 14-speed Mack mDRIVE HD AMTs offer low reduction creeper gear ratios designed for easier startability on steep grades or when the truck is carrying a heavy load. With this improved startability customers are able to select a faster rear axle ratio, which decreases engine rpm at highway speeds, saving fuel as the truck travels between jobsites.

Source: Mack Trucks
