Continental Conveyor Belts Working Flat Out on MegaTunnel Project
in Sweden

Conveyor belts designed by technology company Continental are being used to transport rubble from one of Sweden’s biggest infrastructure projects: “Förbifart Stockholm” (Stockholm Bypass).

Situated to the west of the Swedish capital, the bypass has been under construction since 2015. Most of it is being built underground, and it is intended as a north-south link to reduce the volumes of traffic passing through the center.

HeidelbergCement’s aggregate company Jehander is using Continental quality solutions at its Löten quarry near Stockholm to enable rubble from the megatunnel to be reused for road construction.

The number of city dwellers is growing exponentially across the globe. This urban growth fever has many consequences, including lack of space, limited living space, congested road networks resulting in gridlock and poor air quality – and is a common problem for megacities as well as for Stockholm.

About 20% of the Swedish population is currently living in the Greater Stockholm area. That is more than 2 million people – and it is the most rapidly growing city in Europe, according to the Swedish Chamber of Commerce. What is more, around half a million of Stockholm’s residents are commuters.

The new 21-km Stockholm Bypass highway link is being built on the outskirts of the capital to cope with the city’s continuous growth and make everyday life easier for residents by reducing traffic jams and improving air quality.
More than 18 km of the bypass are up to 80 m below ground level and pass under Sweden’s 3rd-largest lake (Lake Mälaren) in 3 places. Once the bypass opens (scheduled for 2026), as many as 11,000 vehicles an hour (145,000 vehicles a day) will pass through the 2 separate tunnels traveling on 3 lanes in each direction.

It would be easier to build an overground system of routes and bridges. But Sweden is a leader in sustainable urban planning and is very focused on environmental preservation – so constructing a tunnel is the best approach under these circumstances. The self-confessed goal of Sweden’s Ministry of Transport is also to complete the project creating the smallest possible CO2 footprint in the process.

Constructing megatunnels like the Stockholm Bypass project generates a lot of rubble. A series of conveyor belt systems are being used to transport the extracted rock to 3 temporary ports that have been set up for the project.

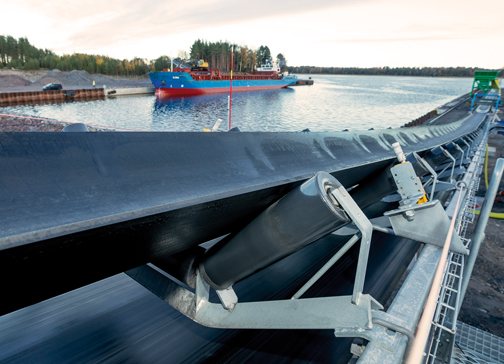

The rubble is taken across the waterways by inland vessels from the construction site in Stockholm to Jehander’s quarry in Löten. Transportation by sea has proven to be a much more efficient mode of transport than using truck fleets. Ships can carry between 1,500 and 3,000 t of rock per load, whereas trucks can manage only 35 t. As many as 4 fully-loaded ships a day arrive in Jehander’s port.

The rubble is then reused as concrete mostly for road construction, or is used to build houses and office buildings in Stockholm and the surrounding area. But first the rock has to be washed, crushed, and treated at Jehander’s quarry site. The company operates 6 strategically-placed quarries in the Stockholm area. This is not surprising, because if there is one thing the growing city needs it is construction material.

“Here at Löten quarry, our textile conveyor belts are currently working at full speed as a result of the major bypass construction project,” explained Continental’s Daniel Grimes. “They have proven to be an exceptionally reliable solution on numerous projects that building materials company HeidelbergCement and its subsidiaries have worked on in Sweden as well as on projects all over the world.”

“So far we have taken roughly 7% of the total 5.5 million t of rock that need to be processed out of the tunnel,” added Niclas Pettersson at Jehander. “For this undertaking we can count not only on the quality and long service life of Continental’s conveyor belts, but also on the smooth operation of the systems. Service plays just as big a role as the high-quality products and systems in our longstanding partnership.”

Service partner Continental’s tight-knit network means that it can offer its customers a local service with everything from a single source – from technical advice, extensive planning and engineer-driven development all the way through to manufacturing, installation, commissioning, maintenance and monitoring for complex conveyor systems and delivery of conveyor belts and components.

Continental has a suitable conveyor belt in its range to meet customers’ construction requirements – whatever they may be. Steel cord conveyor belts are suitable for particularly high-stress transportation requirements, and corrugated-sidewall belts, which take up very little space, are ideal for building suburban rail networks. They emit very low noise levels, which is especially ideal in cities. They can convey bulk material at vertical angles and lifting heights of 400 m and clear away up to 6,000 t/h of rubble. Conveyor belts also have clear advantages to trucks when it comes to tunnel construction. Using them means that no extra exhaust systems have to be installed during the tunnel works, because Continental’s system solutions do not produce any emissions.

Sweden demonstrates its capacity for innovation time and again with construction projects like the bypass. This fact is also confirmed by this year’s Global Innovation Index in which Sweden is ranked 3rd out of a total 126 economies, behind Switzerland and the Netherlands.

Continental products are also passing the acid test for the tunnel expansion part of the project. Stockholm is built on top of solid rock, which poses some real challenges for tunnel builders.

Drilling equipment from Epiroc, a leading productivity partner for the mining, infrastructure and natural resources industries, is being used for this purpose as it is able to penetrate the hard rock to drill the blast holes. It can cover transverse sections of rock upwards of 100 m2, which makes the process as economical as possible.

The drill rigs use as many as 3 extension arms, which places a huge strain on the tires when the machines are in motion. That is why the drilling machines are fitted with Continental DrillMaster premium tires.

High cut resistance, good traction and stability are qualities that are simply essential for tires under these working conditions. The Continental DrillMaster with its V.ply design is the perfect choice here.

A highly cut-resistant rubber compound protects the carcass of the tires in environments where there is freshly blasted rock. The tire carcass is also specially equipped for the heavy loads and its innovative zig-zag tread design features a maximum number of gripping edges in all directions. These features allow the machines to cope with extreme gradients and downhill slopes as well as to undertake cornering maneuvers safely.

Source: ContiTech
