Trottex Transit



New and Unique for North America!

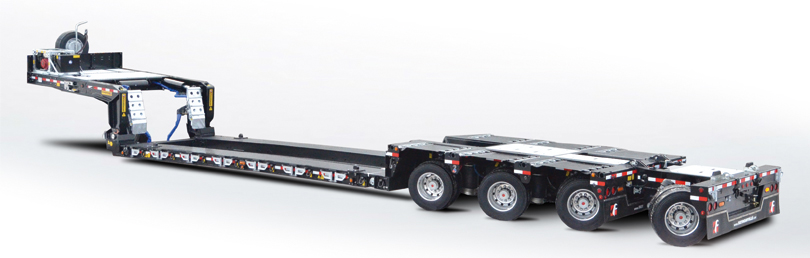

A steerable 4th pin-on flip axle is the latest option for the MegaMAX double drop from trailer manufacturer Faymonville. A brand new and unique feature for North America, the tool helps to increase the legal pay load and to ensure even more versatility going from state to state.

Using state-of-the-art king pin steering, the new pin-on flip axle is user-friendly while offering new transport possibilities. At an axle load of 9,071 kg, it allows a total payload capacity up to 43,091 kg. At the maximum technical axle rating of 10,296 kg in the 4-axle configuration, the trailer can even handle up to 47,990 kg including the 4th axle, the basic trailer has an empty weight of around 18,143 kg.
When the 4th axle is not needed, it is easy to detach or flip to shorten the combination. No shimming is required. The simple-to-use and robust mechanical steering link between the 3-axle bogie and the pin-on requires no hydraulics.

The unique king-pin steering on these double drops offers unmatched maneuverability and allows access to extremely tight areas such as construction sites, power plants or inner cities, which is always a challenge with long and oversize cargo. The hydraulic detachable gooseneck permits continuous height adjustment and a maximum of flexibility during loading and unloading of construction machinery.

The MegaMAX is available with a stretch deck and a minideck. With 35 cm drive height, the stretch is the lowest of its kind in the market and helps to clear even the lowest bridges. The deck stretches from 7.6 m up to 12.8 m, and can be extended even further using additional deck inserts thanks to the detachable rear bogie. The minideck has a loading height of 27.4 cm and is ideal to move transformers or generators. The steel construction on the whole width allows maximum point loads.

Faymonville is the only European manufacturer in the North American market that uses electric and pneumatic parts that are completely DOT approved. This also means that spare parts for these components are easily available throughout the U.S. and Canada.

Source: Faymonville Group
