Minnich to Introduce Single Gang Barrier Wall Drill
at World of Concrete 2024


Minnich Manufacturing will introduce the new Single Gang Barrier Wall Drill at the World of Concrete 2024, January 23-25, 2024 in Las Vegas, Nevada.

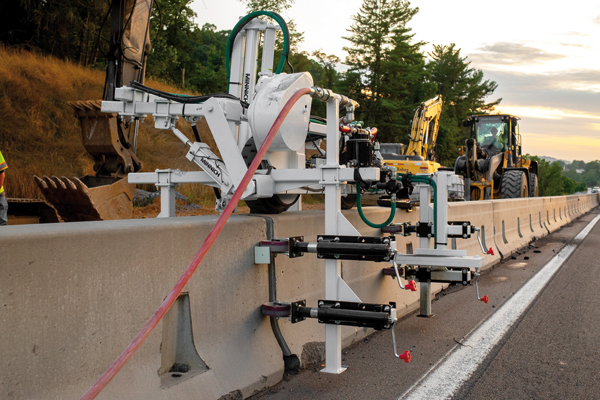

The Single Gang Barrier Wall Drill is a self-propelled, pneumatic drill that has been designed to optimize efficiency and safety during the process of securing concrete barrier walls by drilling a single hole with greater precision and in less time than multiple gang options, eliminating the time of making manual adjustments to align multiple drill hole measurements.

The efficiency makes the Single Gang Barrier Wall Drill a superior option for roadway construction and patching projects requiring concrete barrier wall protection. The 2.4 x 2.0 m frame easily sits on a flatbed trailer for easy jobsite transport. The 740-kg drill can be lifted and placed on a concrete barrier wall with a backhoe or compact excavator.

The unit is equipped with an air-powered motor, which propels the equipment along the barrier wall from hole to hole. A tethered handheld remote that enables operator control at a safe distance from the machine during the drilling process. Safety is further enhanced with an optional dust collection system.

The Single Gang Barrier Wall Drill reaches a maximum drill depth of 45 to 90 cm with a drill steel shank of 25 mm x 108 mm and a drill bit diameter of 25 mm to 63 mm. The drill requires 3.9 m3/min and 8.3 bar of pneumatic power.

Minnich also offers a Barrier Wall Drill that allows the simultaneous drilling of up to 3 pin holes at the same time. The 3-gang drill also provides full operator control using a tethered controller for greater safety.

Source: Minnich Manufacturing
